Prepainted & Zinc Steel & Aluminium IT4 Roofing Panel Manufacturing Machine
General Introduction

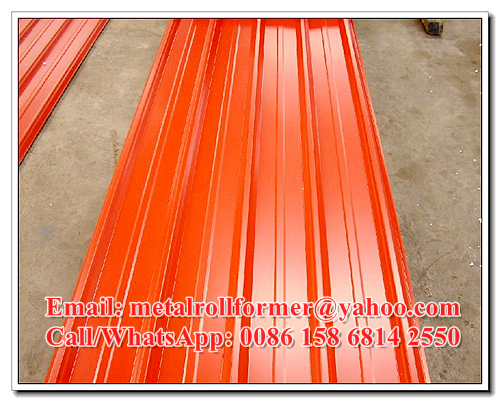

The finished IT4 roof sheet is a angular trapezoidal profile with box crests and valleys suitable for roofing and wall cladding. It is ecpecially targeted at domestic and light industrial & commercial applications where the goal is economy and aesthetics. IT4 roof sheets have 4 industrial troughs and 5 box ribs.
Aluminium IT4 Roof Panel Roll Forming Machine Roof Tile Machine 220V / 380V
Technical Specifications of Aluminium and Steel IT4 Roofing Sheet Roll Forming Machine
Raw Material Type: Aluminium & Iron Coils, PPGI, GI, PPGL
Width: 1000 mm; Thickness: 0.3-0.7 mm
Yield Strength: 235-345 MPa or specially designed for 550 MPa
Finished Roof Sheet: Cover width 780 mm; Length Adjustable
Required Power Supply: Voltage 220V/380V/415V/440V
Driving Motor: 7.5 KW; Cutting Motor: 2.2 KW
Production Speed: 900-1200 meters per hour
Coil Decoiler Type: Un-powered or Powered; Capacity: 5 tons
Rolling Stations: 19 sets; Rolling Shaft Diameter: 72 mm
Cutting Type: Post-cutting
Electrical Operation System: Mitsubishi PLC, transducer and touching screen
Supporting Tables: 2 sets
Machine Size: Around 9 x 1.6 x 1.5 meters; Machine Weight: Around 8 tons
Main Components of Aluminium and Steel IT4 Roofing Sheet Manufacturing Machine
1 Coil Decoiler 1 set
2 Main Roll Former Machine
Direction Guilder 1 set
Rolling System 1 set
Post-cutting Device 1 set
3 Supporting Tables for Finished Products 2 sets
4 Hydraulic Station for Cutting Device 1 set
5 PLC Control Cabinet 1 set
6 Tools Box with Spare Parts 1 set
Applications:
The finished IT4 roof panels are widely used for the roof and wall of houses and other commercial buildings.
We are supplying all kinds of oven baked aluminium roofing sheets making machines, such as box prfiled longspan metral roofing sheet making machine, normal steptile roof sheet making machine, metcopo step tile roof sheet making machine, cameroon aluzinc roof sheet making machine, ridge cap manufacturing machine and so on. If you want to get more details about this corrugated longspan aluminum roof sheets corrugation machine, please contact us by the following information!
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
