Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China

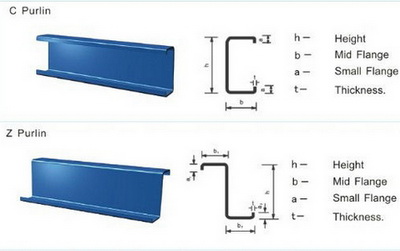

Cee & Zee SHAPE PURLINS PANEL ROLL FORMING MACHINE
This metal purlin making machine is an advanced metal roll former, which is manufacturing galvanized steel cee & zed profile purlin sheet with a high speed. This purlin sheets roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.
CHARACTER
It is really a new type of energy-saving and high-efficiency metal purlin sheets rollformer for c & z purlin panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
MAIN PARAMETERS:
1. Material Spec. Q235; Thickness: 2.0mm to 3.0mm
Galvanized Zinc Steel & Aluzinc Iron
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 15kw
Hydraulic station power: 5.5kw
5. Working speed: 15m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.
Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
If you want to get more information about this C & Z profiled purling sheets manufacturing machine, such as price, delivery time, payment and so on, please contact us by the following information:
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
