Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China

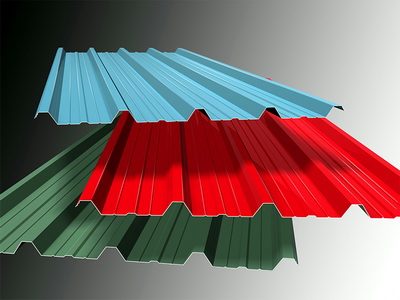

Widespan 762 Roof Cladding Sheets Roll Former
We are a professional manufacturer and exporter of metal rollformers. The range of our products are corrugated roof sheet roll former, IBR 686 profiled roof sheet roll former, roofing tile roll former, ridge cap roll former, C & Z purlin rollformer, floor deck sheet roll former, roller shutter slat roll former and so on . The advertised rollformer machine is a complete automatic production machine for making colored steel 762 wide span roof sheets. It consists of decoiler, guilding device, roll forming machine, cutting device, supporting tables and Mitsubishi PLC control system.
MAIN PARAMETERS:
1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 15~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.
Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
If you want to get more information about our metal roll formers, such as price, delivery time, payment and so on, please contact us by the following information:
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
