Strong Corrugated Longspan Roofing Sheet Roll Forming Machine for Voltage 380V or 415V
Working flow of Corrugated Roof Sheet Production Line

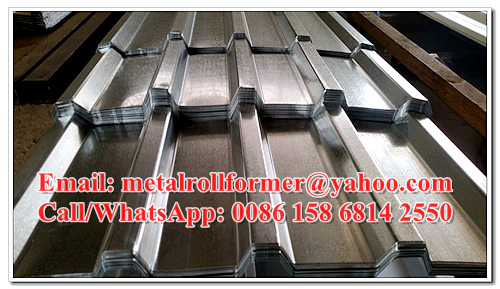

Decoiling→ Sheet Guiding → Rollforming → Post-cutting → Finished Roof Sheet on Supporters
Machine Components of Aluminium Roof Sheet Corrugating Machine
De-coiler 1 set
Roll Forming System 1 set
Cutting Device 1 set
PLC Control Box 1 set
Hydraulic Pump Station 1 set
Product supportting Tables 1 set
Technical description Aluminium Roof Sheet Corrugating Machine
A Manual decoiler (automatic decoiler is optional)
Max.capacity: 5000kg; Coil inner-diameter: 508mm; Out Diameter: 1000 mm
B Roll-Forming System
Material thickness: 0.4-0.7mm
Feeding width and effective width depens on profile drawing
Rolling Steps: around 20 sets; Coated Chrome Thickness: 0.05 mm
Roller Material: 45# steel with quenching treatment, then coated with chrome
Shaft Material: 45# steel with quenching treatment; Shaft Diameter:72mm
Voltage: 380V/50Hz/3Phase; Corrugating Speed: 15-20meters/min; C Cutting Device
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.
Cutting length tolerance: ±2mm; Cutting tool material: GCr12 with quenched treatment 60-62°C; Power of the oil pump: 3kw; Hydraulic oil :40#
D Control System
It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted; Computed mode has two modes: automatic and manual one.
Type: PLC Frequency Control System with touching screen; PLC Brand: Mitsubishi; Encoder Brand: Omron; Length Error:±2mm; Transducer: Mitsubishi
E Output Table
It is simple to be used to support finished products. Length: 1.5 meters for each
We are supplying all kinds of oven baked aluminium roofing sheets making machines, such as box prfiled longspan metral roofing sheet corrugating machine, normal steptile roof sheet making machine, metcopo step tile roof sheet corrugation machine, cameroon aluzinc roof sheet making machine, ridge cap manufacturing machine and so on. If you want to get more details about this Strong Corrugated Sheet Roll Forming Machine With Mitsubishi PLC Control from Japan, please contact us by the following information!
